Finally a comfortable living area

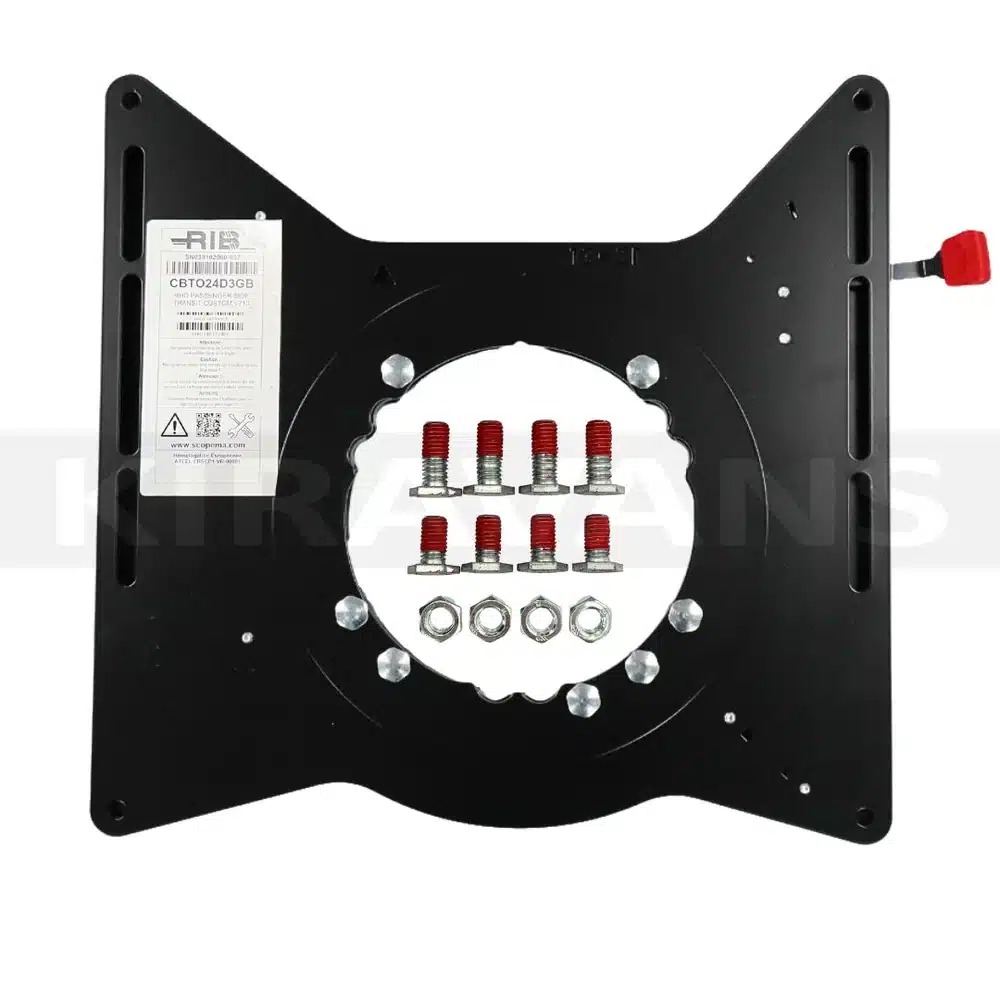

The swivel base for the passenger seat is specifically designed for the Ford Transit Custom V710 (from 10/2023) and allows the seat to rotate 180°, quickly transforming the driver’s cabin into a comfortable living area. It is an ideal solution for camper vans, van conversions, and travel vehicles that want to make the most of the available interior space.

Made from high-strength powder-coated steel, this swivel base offers excellent stability, long-term durability, and quiet operation even after frequent use. The compact design of the new V3 generation keeps the additional seat height to a minimum while maintaining an ergonomic and comfortable driving position.

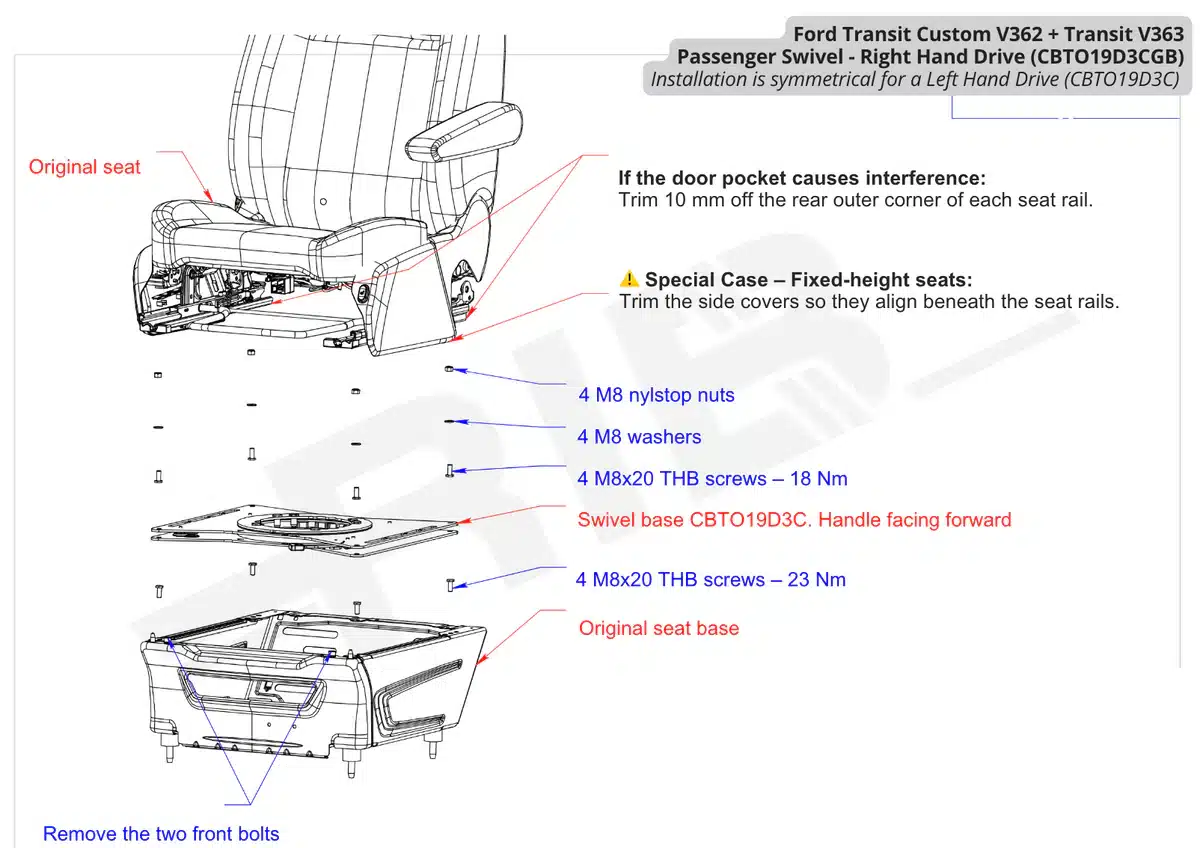

The swivel plate is installed between the original seat and the seat box, without requiring structural modifications to the vehicle. Installation is quick and straightforward, and all necessary mounting bolts for standard seats are included.

Manufactured in France by Scopema, a well-known producer of RIB swivel systems widely used in professional camper conversions. The high build quality and precision mechanism ensure smooth rotation and secure locking in the driving position.

The swivel base is also ATEEL certified, an independent European testing laboratory that evaluates products according to the same strict safety standards as TÜV, including regulations R14, R16, and R17 related to vehicle seating systems.

This version is compatible only with left-hand drive vehicles (LHD – Left Hand Drive).

Key features

180° seat rotation
Compatible with Ford Transit Custom V710 from 10/2023
Only for left-hand drive (LHD) vehicles
Installation between original seat and seat box
Robust powder-coated steel construction
New V3 design, lighter and more compact
Low profile: only 21 mm seat height increase
Weight approx. 8.5 kg
Central pivot axis for smooth rotation
Secure locking in driving position
Large central cable opening
Stable and silent operation
Manufactured in France by Scopema
European ATEEL certification (R14, R16, R17)
Mounting bolts included
