Superior visibility, no compromises on quality

The VW T5.1 front grille integration kit with Lazer LED Triple-R 750 is the ideal choice for anyone looking for more light, enhanced safety, and seamless integration, both on-road and off-road.

Designed for intensive vehicle use – from long-distance travel and daily driving to mountain roads and off-road conditions – the kit integrates high-performance Lazer LED lights directly into the original grille, maintaining a clean OEM look while providing powerful illumination when it matters most.

This is not just an aesthetic upgrade, but a functional solution engineered to improve safety, visibility, and reliability in all conditions.

Vehicle-specific OEM integration for VW T5.1

The kit is custom-built for VW T5.1 (from 2010 onwards).

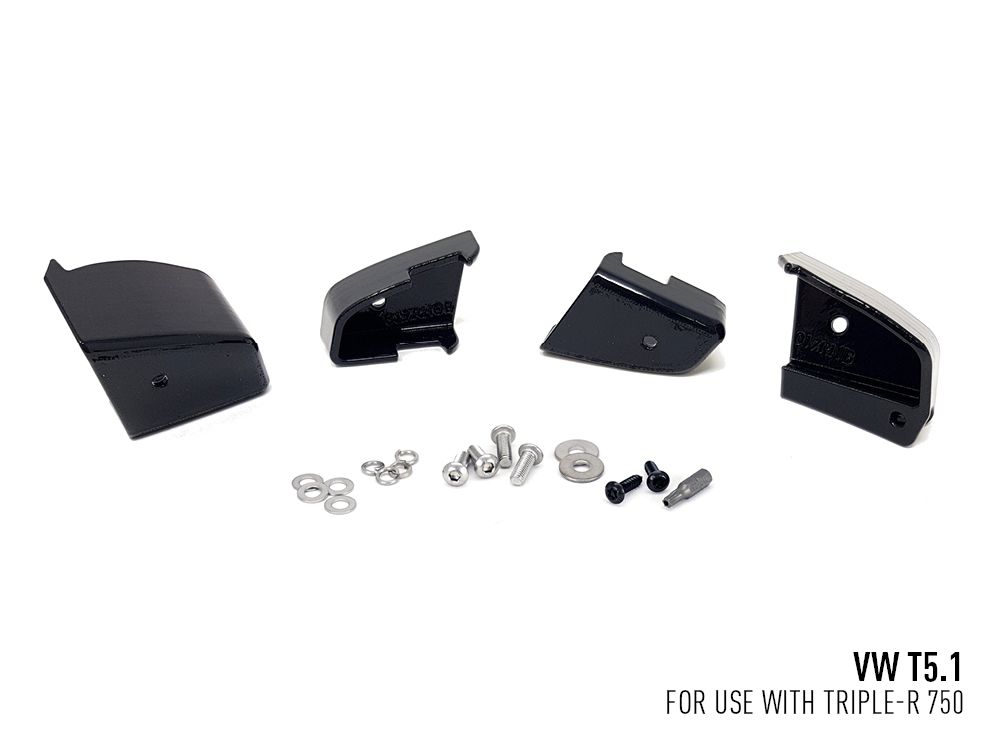

The dedicated mounting brackets allow a precise and stable installation without altering the vehicle’s original design. The result is a discreet, professional fit comparable to factory equipment.

Lazer LED Triple-R 750 – real-world performance

The kit supports two Lazer LED Triple-R 750 lights, available in:

• Standard

• Wide

• Elite

• Beacon

These lights offer an optimal combination of range, beam width, and uniform illumination, making them perfect for night driving, poorly lit roads, and off-road adventures.

With a colour temperature of around 5000K, they produce a natural, eye-friendly light, ideal for long night drives.

Technical specifications

Electrical Data

Operating voltage: 10–32 V DC
Power consumption:
Standard / Wide: 88 W
Elite / Beacon: 104 W
Current draw at 14.4 V:
Standard / Wide: 6.2 A
Elite / Beacon: 7.4 A
LED lifespan: up to 50,000 hours

Lighting Performance

Luminous flux (pair):
Standard / Wide: ~9,240 lm
Elite: ~10,136 lm
Beacon: ~10,800 lm
Colour temperature: ~5000 K
Beam pattern: long-range with uniform distribution
Effective visibility: over 600 m, up to 1,300 m depending on version

Certification & Protection

ECE-approved (road-legal versions)
EMC certification ECE R10
IP68 waterproof rating
Resistant to vibration, dust, mud, and extreme weather
Corrosion and surge-tested

Materials

Brackets made from high-strength, UV-stable composite
Lamp housing in aluminium with protective coating
Total kit weight with lamps: ~2.6 kg

Durability & Reliability

The VW T5.1 front grille kit with Lazer LED Triple-R 750 is designed and manufactured in the UK to high-quality standards.
Like all Campzilla-selected products, it’s built to withstand intensive use and comes with a 5-year manufacturer warranty.

Package contents

VW T5.1 front grille integration kit
2 × Lazer LED Triple-R 750 (selected version)

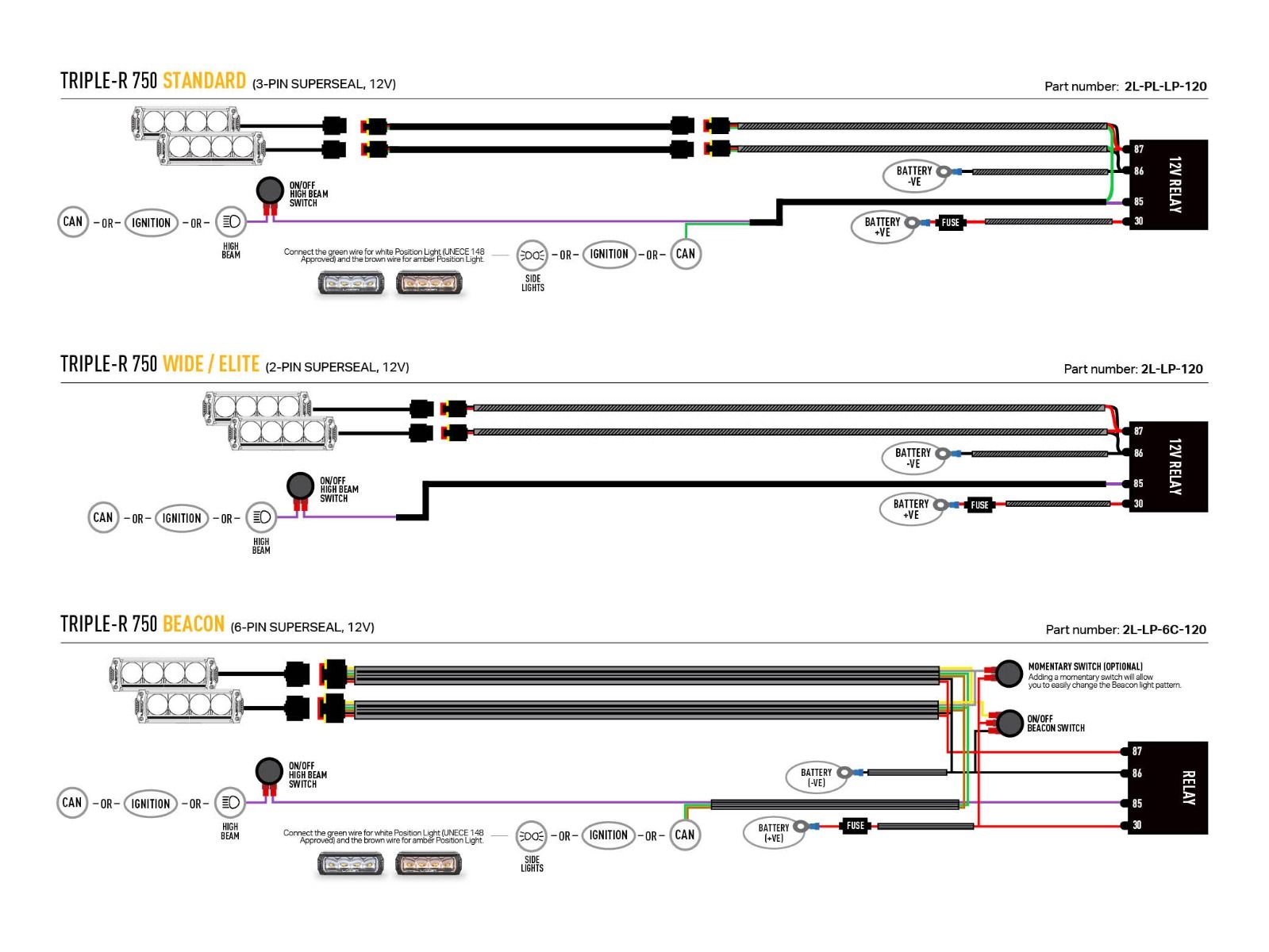

Two-lamp wiring harness
Cutting templates
Mounting hardware
Installation instructions

Why choose this kit

Discreet OEM-style integration
Powerful and reliable LED lighting
Long-lasting LED technology
Durable materials for intensive use
Road-legal versions
